Products / Computer cases / Minitower / Series BAA 4xx

Series BAA 4xx

Optional accessories Accessories

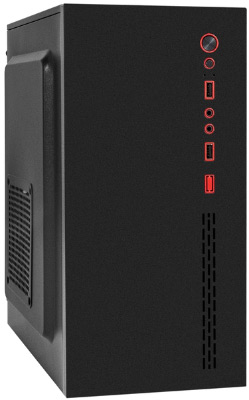

Model BAA-403

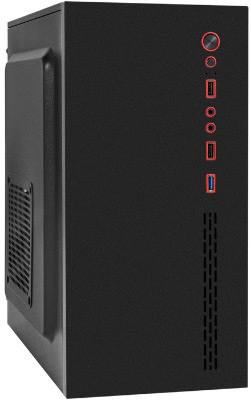

BAA-403		BAA-403U
BAA-403U		BAA-403U2
BAA-403U2		BAA-408

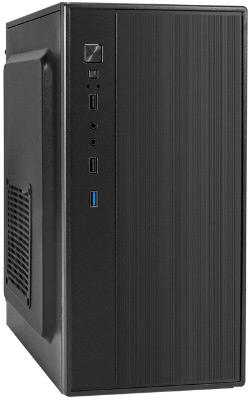

BAA-408		BAA-408U
BAA-408U
Cases Features
Case TypeMiniTowerMiniTowerMiniTowerMiniTowerMiniTower
Motherboard SupportmATXmATXmATXmATXmATX
Chassis MaterialSteelSteelSteelSteelSteel
Material Thickness, mm0,40,40,40,40,4
Material of front panelSteelSteelSteelPlasticPlastic
Material of left panelSteelSteelSteelSteelSteel
Material of right panelSteelSteelSteelSteelSteel
Screwless Accessyesyesyesyesyes
Number of screws for mounting the side panel, pcs22222
Case ColorBlackBlackBlackBlackBlack
Chassis ColorBlackBlackBlackBlackBlack
Power
PSU TypeATXATXATXATXATX
Power supply locationAt the top of the rear sideAt the top of the rear sideAt the top of the rear sideAt the top of the rear sideAt the top of the rear side
PSU models*AAA350, AAA400, AAA450, AA500, UNS350, UNS400, UNS450, UNS500AAA350, AAA400, AAA450, AA500, UNS350, UNS400, UNS450, UNS500AAA350, AAA400, AAA450, AA500, UNS350, UNS400, UNS450, UNS500AAA350, AAA400, AAA450, AA500, UNS350, UNS400, UNS450, UNS500AAA350, AAA400, AAA450, AA500, UNS350, UNS400, UNS450, UNS500
Recommended ExeGate PSUSeries AAA, AA, Special UNSSeries AAA, AA, Special UNSSeries AAA, AA, Special UNSSeries AAA, AA, Special UNSSeries AAA, AA, Special UNS
Construction
Internal Drive Bay 3,5"11111
Internal Drive Bay 2,5"2 (1 instead of 1x3.5")2 (1 instead of 1x3.5")2 (1 instead of 1x3.5")2 (1 instead of 1x3.5")2 (1 instead of 1x3.5")
Expansion Slots44444
Cooling System
Places for installation on the rear panel1 x 8 cm1 x 8 cm1 x 8 cm1 x 8 cm1 x 8 cm
Places to install on the side panel1 x 12 cm1 x 12 cm1 x 12 cm1 x 12 cm1 x 12 cm
Recommended ExeGate fans8 cm, 12 cm8 cm, 12 cm8 cm, 12 cm8 cm, 12 cm8 cm, 12 cm
Interfaces
Interface locationon the front panelon the front panelon the front panelon the front panelon the front panel
USB 2.0 Type-A22122
USB 3.2 Gen1 Type-A-12-1
Audio I/O PortsHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mm
Other parameters
Max. motherboard length, mm244244244244244
Max. height of the CPU fan, mm140140140140140
Max. PSU length, mm200200200200200
Max. SVGA length, mm250250250250250
Chassis dimensions
Width, mm163163163165165
Height, mm342342342340340
Depth, mm255255255255255
Case Dimensions
Width, mm170170170165165
Height, mm342342342340340
Depth, mm265265265265265
Carton Dimensions
Width, mm205205205205205
Height, mm305305305305305
Depth, mm380380380380380
Net Weight, kg1,41,41,41,381,38
Gross Weight, kg1,71,71,71,71,7
PSU models, PN/EAN
w/o PSUEX298159
4895205180574		EX298163
4895205180611		EX298810
4895205185036		EX298151
4895205180659		EX298155
4895205180697
350W/AAAEX298160
4895205180581		EX298164
4895205180628		EX298811
4895205185043		EX298152
4895205180666		EX298156
4895205180703
350W/UNSEX299252
4895205187924		EX299260
4895205187962		EX299256
4895205188006		EX299268
4895205188044		EX299264
4895205188082
400W/AAAEX298161
4895205180598		EX298165
4895205180635		EX298812
4895205185050		EX298153
4895205180673		EX298157
4895205180710
400W/UNSEX299253
4895205187931		EX299261
4895205187979		EX299257
4895205188013		EX299269
4895205188051		EX299265
4895205188099
450W/AAAEX298162
4895205180604		EX298166
4895205180642		EX298813
4895205185067		EX298154
4895205180680		EX298158
4895205180727
450W/UNSEX299254
4895205187948		EX299262
4895205187986		EX299258
4895205188020		EX299270
4895205188068		EX299266
4895205188105
500W/AAEX299408
4895205189072		EX299410
4895205189096		EX299409
4895205189089		EX299389
4895205188303		EX299390
4895205189102
500W/UNSEX299255
4895205187955		EX299263
4895205187993		EX299259
4895205188037		EX299271
4895205188075		EX299267
4895205188112
* At a customer's request Computer Cases can be completed with any PSU
