Vertical PDUs
| Model | Maximum load current, A | Output Sockets | Input Power | Control Functions | Standard Compliance | Weight, kg | P/N | EAN | ||||
| Socket | Type of outlet | Type of plug | Specification | Conductor material | Length, m | |||||||

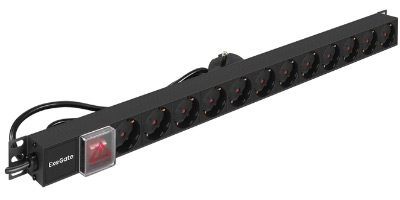

 Al-12S-EU2.5-SW |
16 | 12 Schuko | Schuko plug (CEE 7/7); Undetachable |
Wire section: 3 x 1,5 mm2 | Copper | 2,3 | Switcher with light and cover | VDE, EAC | 1 | EX296172 | 4895205162426 | |

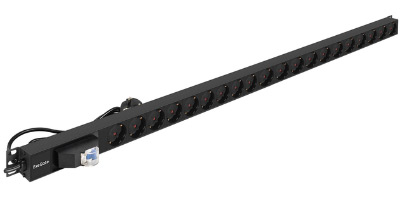

 Al-20S-EU3-1P |
16 | 20 Schuko | Schuko plug (CEE 7/7); Undetachable |
Wire section: 3 x 2,5 mm2 | Copper | 2,8 | Switcher with cover | VDE, EAC | 1,7 | EX296173 | 4895205162433 | |
 Al-20S-T-1P |
16 | 20 Schuko | Terminals PG11 | Switcher with cover | VDE, EAC | 1,3 | EX300288 | 4895205195417 | ||||
Al-10C1310S-EU2-1P |
16 | 10 IEC 320 C13 + 10 Schuko | Schuko plug (CEE 7/7); Undetachable |
Wire section: 3 x 1,5 mm2 | Copper | 2 | Switcher with cover | VDE, EAC | 1,6 | EX300291 | 4895205195448 | |
Al-10C1310S-T-1P |
16 | 10 IEC 320 C13 + 10 Schuko | Terminals PG11 | Switcher with cover | VDE, EAC | 1,3 | EX300289 | 4895205195424 | ||||
Al-10C1910S-T-1P |
16 | 10 IEC 320 C19 + 10 Schuko | Terminals PG11 | Switcher with cover | VDE, EAC | 1,6 | EX300290 | 4895205195431 | ||||
Al-24S-T-1P |
16 | 24 Schuko | Terminals PG11 | Switcher with cover | VDE, EAC | 1,85 | EX300292 | 4895205195455 | ||||

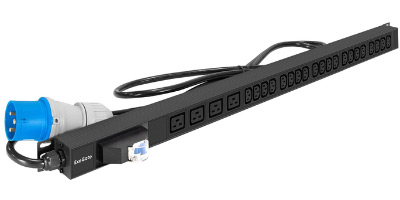

 Al-20C134C19-IEC309-32A-1P |
32 | 20 IEC 320 C13 + 4 IEC 320 C19 | IEC 60309 32A (2P+E); Undetachable |
Wire section: 3 x 4 mm2 | Copper | 2,8 | Switcher with cover | VDE, EAC | 2,2 | EX296174 | 4895205162440 | |

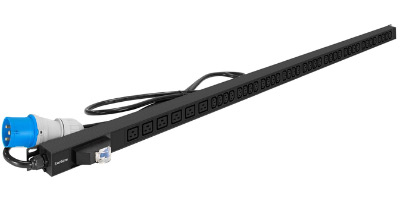

 Al-36C136C19-IEC309-32A-1P |
32 | 36 IEC 320 C13 + 6 IEC 320 C19 | IEC 60309 32A (2P+E); Undetachable |
Wire section: 3 x 4 mm2 | Copper | 2,8 | Switcher with cover | VDE, EAC | 2,8 | EX296171 | 4895205162419 | |
